Linear Pendant Lights · New 2026
ZT8009Slim 16 mm Linear Pendant
A 16 mm blade-thin linear pendant with hand-scan dimming, in lengths up to 2115 mm.
- Material
- Aluminium
- Diffuser
- PC
- Light source
- LED, CRI > 90
- Colour temp.
- 2700 K / 4000 K / 6500 K
- Voltage
- 175–264 V
- Protection
- IP20 · Class I
- Dimming
- Hand-scan (gesture), DIP-switch, TRIAC, DALI or remote dimming
- Suspension
- Adjustable suspension wire, 1500 mm
Customisation available: length, finish, CCT, driver and dimming can be adapted for projects. Samples available.
About this series
Slim 16 mm Linear Pendant

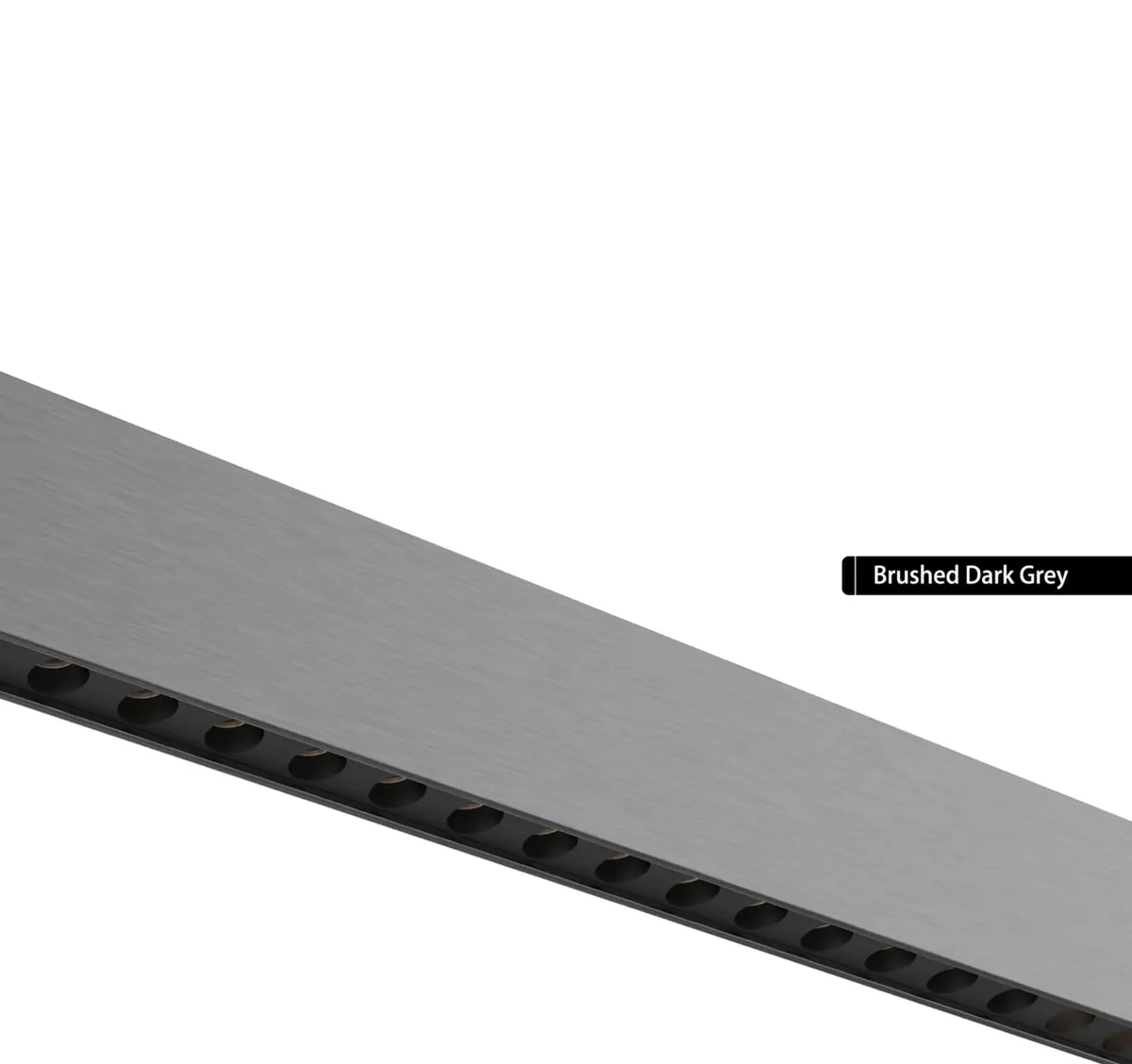

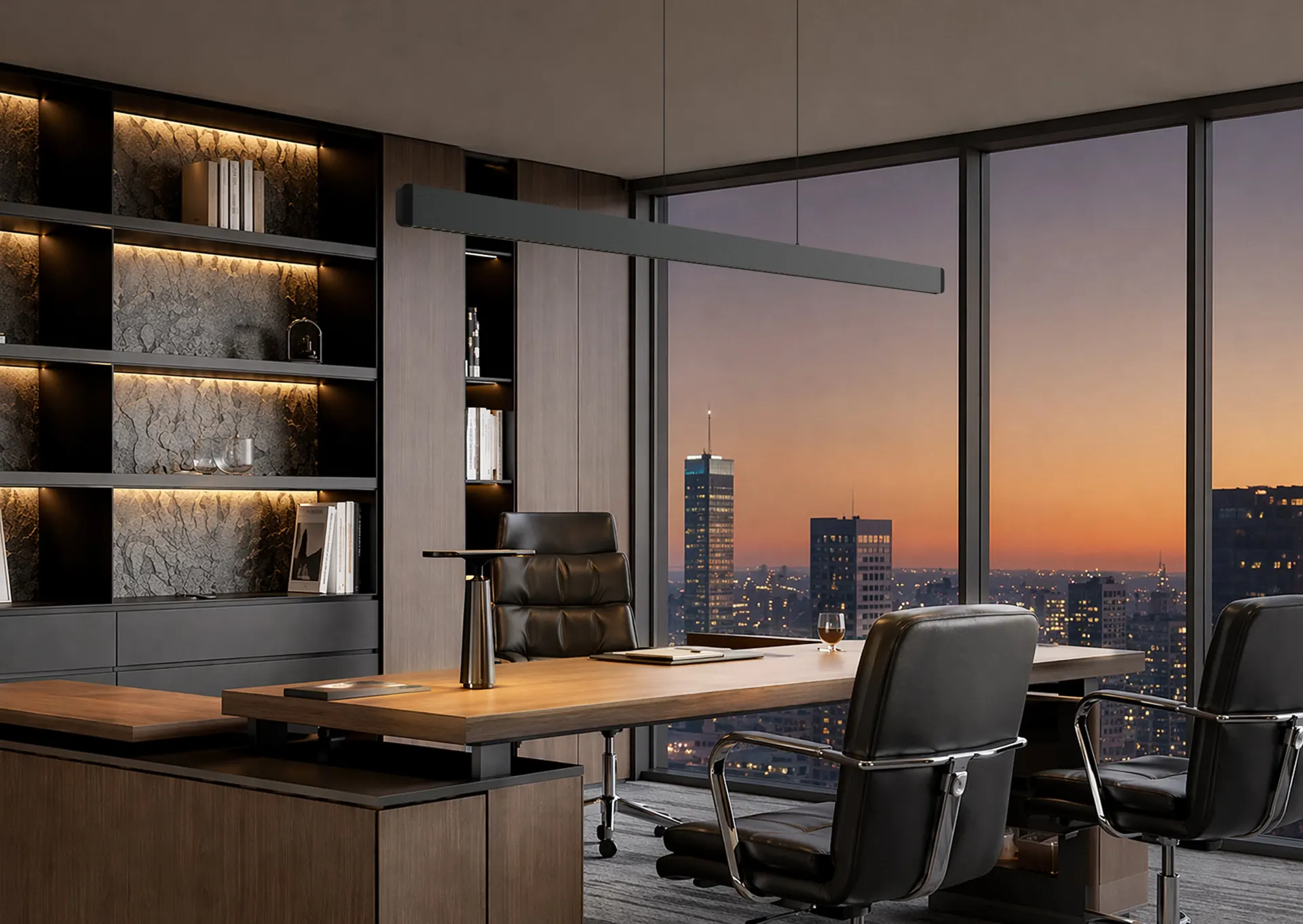

At only 16 mm wide, ZT8009 reads as a single line of light above executive desks and dining tables. Individual 36° micro-lenses control glare, hand-scan dimming removes the need for a wall dimmer, and the 175–264 V driver with 2700 K / 4000 K / 6500 K selection suits projects in any market. Available in brushed dark grey, champagne silver, champagne gold, sand black and sand white.
Features
- 16 mm ultra-slim profile
- Micro-lens 36° optics
- Hand-scan dimming
- Flexible suspension positioning
- Customisation available
Typical applications
Specifications
Models & dimensions
| Item no. | Power | Size (mm) | Beam |
|---|---|---|---|
| ZT8009-12 | 28 W | L1200 × W16 × H60 | 36° |
| ZT8009-16 | 36.5 W | L1660 × W16 × H60 | 36° |
| ZT8009-22 | 48 W | L2115 × W16 × H60 | 36° |
- CRI
- CRI > 90
- IP rating
- IP20
- Safety class
- Class I
- Catalogue
- ZETI 2026 catalogue (PDF)
