ZT8101Up & Down Linear Pendant
Ultra-slim 28 mm aluminium linear pendant with upward and downward light, 36° anti-glare optics and optional motorised lifting.
- Material
- Aluminium
- Diffuser
- PC
- Light source
- LED, CRI > 90
- Colour temp.
- 2700 K / 4000 K / 5000 K
- Voltage
- 220–240 V
- Protection
- IP20 · Class I
- Dimming
- DIP-switch, TRIAC, DALI or remote dimming
- Suspension
- Adjustable suspension wire, 1500 mm
Customisation available: length, finish, CCT, driver and dimming can be adapted for projects. Samples available.
About this series
Up & Down Linear Pendant
ZT8101 is the flagship of the 2026 linear collection: a 28 mm wide extruded-aluminium profile that lights the table below through a 36° faceted lens and washes the ceiling above for balanced, low-glare illumination. It is offered in 1285 mm and 1635 mm lengths with switchable 2700 K / 4000 K / 5000 K colour temperature, DIP-switch, TRIAC, DALI or remote dimming and an optional lamp-lifting function for double-height spaces.
Features

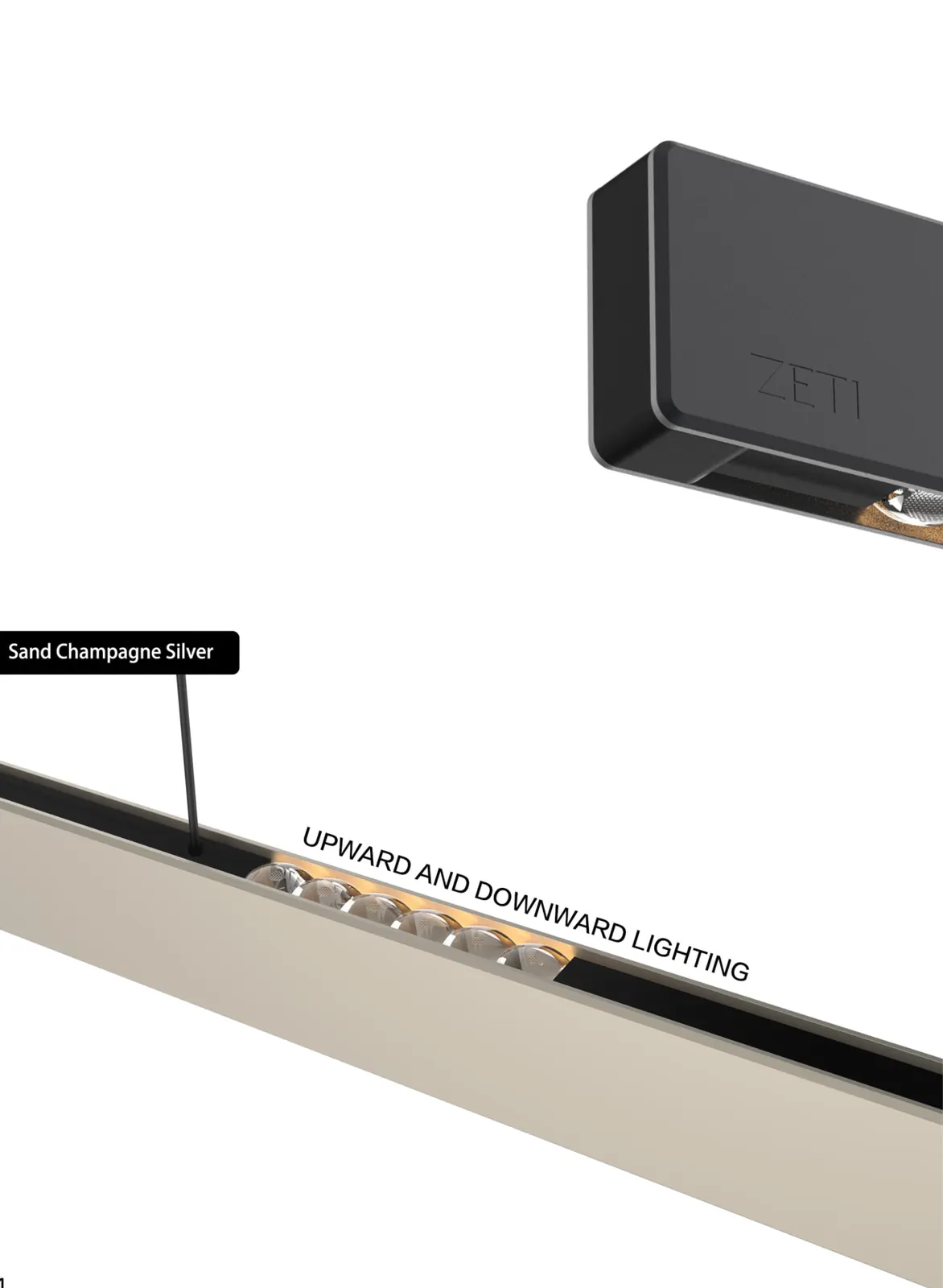

- Upward and downward lighting
- 36° anti-glare faceted lens
- Lamp lifting function (optional)
- Class I construction
- Customisation available
Typical applications
Specifications
Models & dimensions
| Item no. | Power | Size (mm) | Beam |
|---|---|---|---|
| ZT8101-12 | 40 W | L1285 × W28 × H60 | 36° |
| ZT8101-16 | 55 W | L1635 × W28 × H60 | 36° |
- CRI
- CRI > 90
- IP rating
- IP20
- Safety class
- Class I
- Catalogue
- ZETI 2026 catalogue (PDF)
