Wall & Ceiling Linear Lights · New 2026
ZT9026Wall & Surface Linear
Ribbed 43 mm aluminium linear for walls (800–1600 mm) and surface-mounted ceiling runs up to 3 m.
- Material
- Aluminium
- Diffuser
- PC
- Light source
- LED, CRI > 90
- Colour temp.
- 3000 K / 4000 K (wall) · 3000 K (ceiling)
- Voltage
- 220–240 V
- Protection
- IP20 · Class I
Customisation available: length, finish, CCT, driver and dimming can be adapted for projects. Samples available.
About this series
Wall & Surface Linear

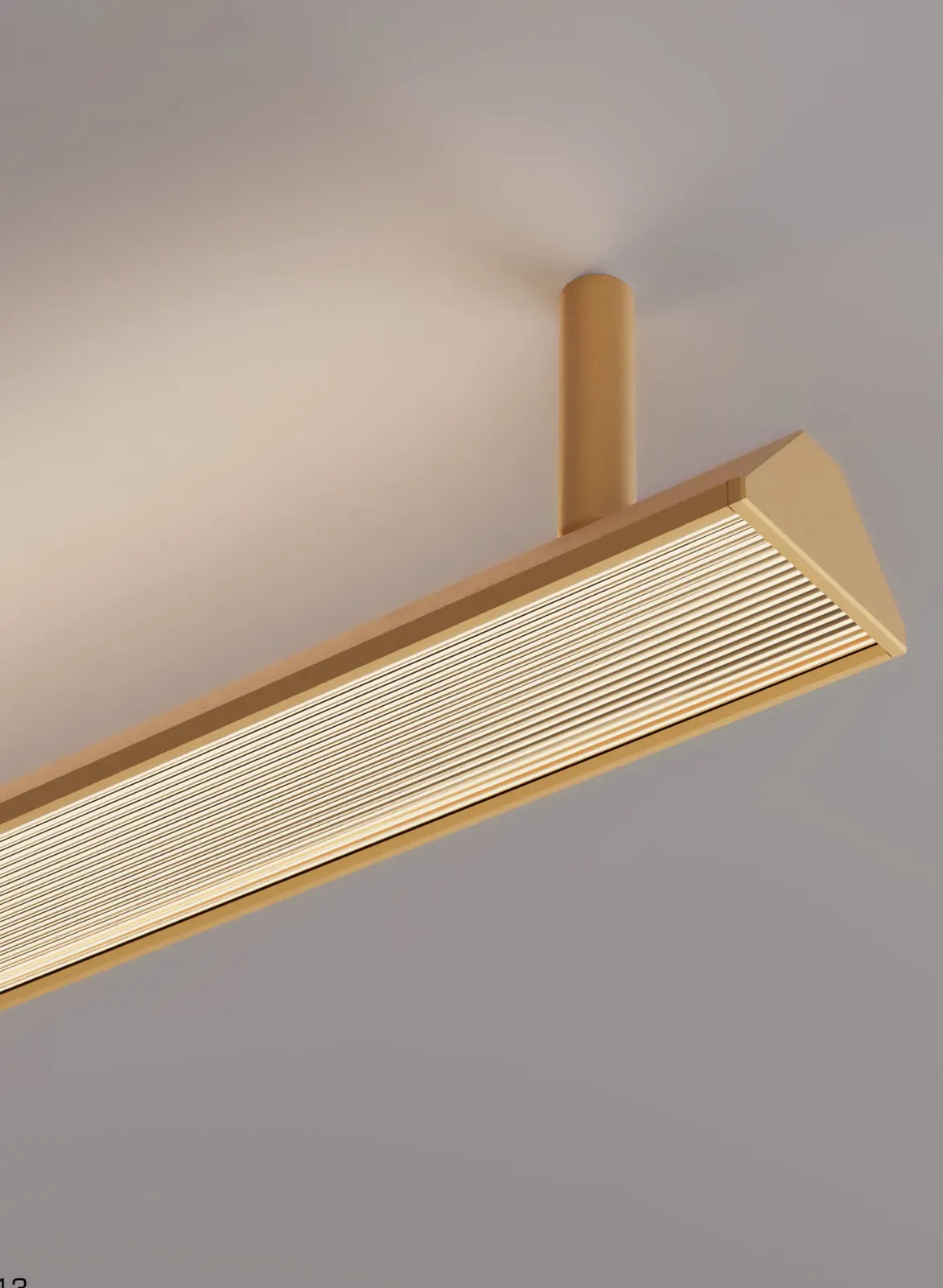

ZT9026 is a 43 mm aluminium linear with a fine ribbed diffuser that can be wall-mounted vertically as a corridor or bedside light, or surface-mounted on the ceiling in 1500, 2220 and 3020 mm runs. Wall versions offer 3000 K / 4000 K; ceiling versions are 3000 K. Six finishes from sand champagne gold to brushed copper let it match door hardware in hotel corridors.
Features
- Wall, ceiling and surface mounting
- Runs up to 3020 mm
- Ribbed low-glare diffuser
- Customisation available
Typical applications
Specifications
Models & dimensions
| Item no. | Type | Power | Size (mm) | CCT |
|---|---|---|---|---|
| ZT9026-A-800 | Wall | 18 W | L800 × W43 × H73.5 | 3000 K / 4000 K |
| ZT9026-A-1200 | Wall | 27 W | L1200 × W43 × H73.5 | 3000 K / 4000 K |
| ZT9026-A-1600 | Wall | 38 W | L1600 × W43 × H73.5 | 3000 K / 4000 K |
| ZT9026-B-1500 | Ceiling | 38 W | L1500 × W43 × H73.5 | 3000 K |
| ZT9026-C-2200 | Ceiling | 50 W | L2220 × W43 × H73.5 | 3000 K |
| ZT9026-C-3000 | Ceiling | 76 W | L3020 × W43 × H73.5 | 3000 K |
- CRI
- CRI > 90
- IP rating
- IP20
- Safety class
- Class I
- Catalogue
- ZETI 2026 catalogue (PDF)
